Reduce Spring Operating Height with Smalley Wave Springs!

Smalley Wave Springs (Flat Wire Compression Springs) offer the unique advantage of space savings when used to replace coil springs. By reducing spring operating height, wave springs also produce a decrease in the spring cavity. With a smaller assembly size and less material used in the manufacturing process, a cost savings is realized.

Readily Available

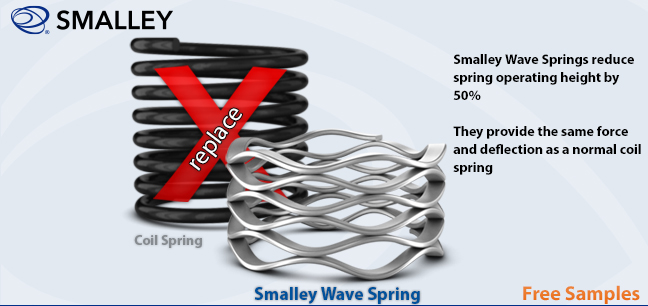

• Wave springs reduce spring height by 50%
• Same force and deflection as ordinary compression springs
• Over 4,000 standard springs in carbon and stainless steel
(¼" to 16", 6 mm to 400 mm diameters)
• No-Tooling-Costs™ on customs (.165" to 120", 4 mm to 3000
mm diameters)
• Exotic alloys available

Learn More About Wave Springs

• Download or Request Smalley’s New
  Parts & Engineering Catalog
• Send us your application requirements
• View application examples
• View our Wave Spring Application Infographic

www.smalley.com

email: info@smalley.com tel: 847.719.5900
