Columbia Marking Tools I-Series "Silent Scribe" boasts a heavy duty frame and ball screw drives to ensure precise operation.
| |
COMPACT I-MARK INTEGRATION MARKING SYSTEM NOW AVAILABLE AS "SILENT SCRIBE".

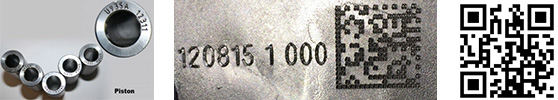

A compact, industrial, integration programmable Scribe marking unit designed to mark text, graphics, date codes, 2D data matrix codes, sequential and random numbering is now available from Columbia Marking Tools, Inc.
The compact I-Mark™ I series "Silent Scribe" marking head is approximately 7 x 7 x 7-inches in size and has a marking window of 2.35 x 1.59-inches. The solid aluminum frame offers a choice of 3 sides to mount on, allowing for extreme flexibility when integrated the marking system into automated production equipment. The x-y CNC movement for the marking head is provided by high torque stepper motors and ball screw drives which mark up to five (1/8") characters per second with good quality readability. The I-Mark I-series has the flexibility with it’s pneumatic marking pin and diamond tip to inscribe a wider range of different materials including ferrous and non-ferrous metals than standard carbide tipped dot-peen systems. The CNC controller for the marking unit has Ethernet, USB, and I/O connections.
|
|
| |
|
| |
Columbia Marking Tools is a leading designer and manufacturer of metal and plastic marking equipment including stamps, roll marking dies, roll marking and impact marking machines, numbering heads and special marking machines.
|
| |
|
|
| | |
