Long Life, Precision Motion and Control: NSK Integrated Solutions
|
|
|
| |

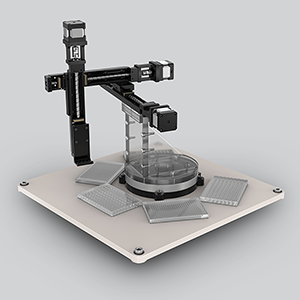

Multi-axis actuator with direct drive motor
A global manufacturer of diagnostic equipment required a custom, fully tested and assembled XYZ platform with rotational positioning to allow continuous reagent processing. Extended lifetime to ensure uninterrupted operations was essential, as was greater rigidity and smoothness over lead screw-based actuators. Specified travel requirements, load conditions and envelope dimensions for their diagnostic equipment had to be met.
|
|
|
LEARN MORE →
|
|
|
NSK Solution
- Robust, NSK-designed, pre-assembled diagnostic system, featuring (3) miniature Monocarriers for X-Y-Z positioning, along with sensor, sensor rail, combining brackets, motor brackets and stepper motors
- Super high resolution and torque, NSK Megatorque motor to rotate the three axis stage in small increments and discrete locations along the platform for precise positioning of the dispensing nozzle
- Equipped with K1 lubrication units for maintenance-free operation as long as 5 years or 10,000 km travel
- Execution of design validation, ensuring proper rigidity and repeatability of assembled system for the application
- Quality assurance testing of each assembled system prior to shipping
- Use domestically-made precision products
|
|
|
|
| |

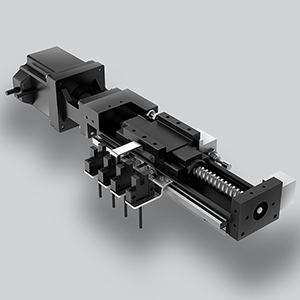

Motorized Monocarrier
An electronic contract manufacturer (ECM) performing assembly and testing of electronic circuit boards was looking for a complete solution for a motorized actuator that could perform highly precise positioning and lifting functions while enduring 24/7 operation. Aside from high accuracy, sustainable performance reliability and long service life were critical – the technology was being adopted in manufacturing facilities worldwide.
|
|
|
LEARN MORE →
|
|
|
NSK Solution
- Custom designed NSK motorized linear actuator
- Integral limit sensors and capabilities for hard stops
- Equipped with K1 lubrication units for maintenance-free operation for up to 5 years or 10,000 km travel
- Fast turnaround for design and prototyping
- Quality testing of each assembled actuator prior to shipping
