New Zero Profile Receptacles From Mill-Max
Keep Components Flush
|
| |

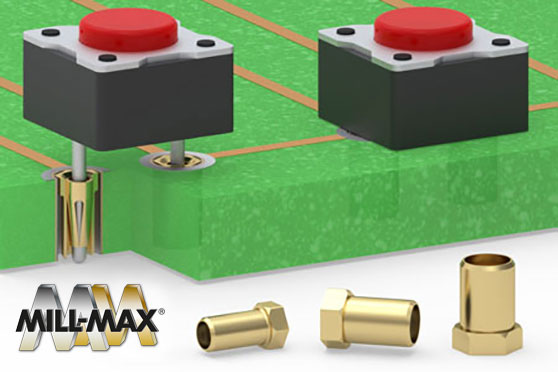

With zero profile receptacles, we have eliminated any above-board connector protrusion, enabling overall package height to be reduced. These receptacles have a precision machined, hexagon shaped flange which is pressed into the PCB Plated Through-Hole (PTH) until flush with the surface of the board. No soldering is required as the press-fit forms a gas-tight connection with a properly specified plated through hole. After installation, the zero profile PCB contacts enable a broad range of devices to be plugged in while minimizing overall interconnect height. They may be used on both traditional and rigid backed flex PCB’s.
Each receptacle is precision-machined from brass alloy and is fitted with a highly reliable multi-finger beryllium copper contact. The standard plating for these receptacles is 10 u” gold on the shell and 30 u” gold on the contact to ensure the highest conductivity, corrosion resistance and durability. The gold plating on the shell also eliminates any issues with material skiving leading to bridging during press-fit into the PCB.
|
| |
|
| |
|
| | |
