Digilent Analog Discovery Pro (ADP) is smaller and lighter than a laptop and has no built-in user-interface. At the heart of each device is a four or two channel high-resolution oscilloscope, offering 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly digital world, 16 dedicated digital channels make the Analog Discovery Pro a true mixed signal oscilloscope. With the included digital power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers the Analog Discovery Pro comes with 12 instruments ready to analyze mixed signal systems through our free software, WaveForms.
|
| |
|
| |
|

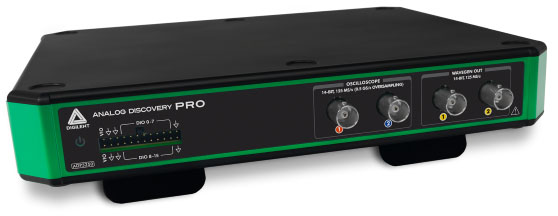

Digilent Analog Discovery Pro ADP3450 portable 4 channels mixed signal oscilloscope
|
| |
|
| |
|
One Software for All Instruments
|
|
WaveForms software, refined by over 10 years of customer feedback, provides a user experience with the look-and-feel of traditional benchtop applications and is compatible to the macOS, Windows, and Linux operating systems. With the WaveForms Software Development Kit (SDK), even more customization is possible, as the SDK can be used to create custom applications and scripts in Python, C, C++, C#, and Visual Basic. For LabVIEW, third-party toolkits are available.
|
| |
|
| |
|

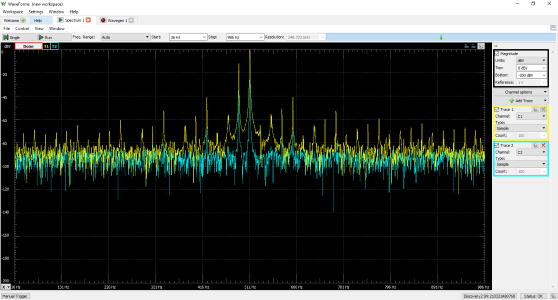

Digilent WaveForms Spectrum Analyzer
|
| |
|
| |
|
Script Module Eases Automation
|
|
Each of the Waveforms’ instruments can be run by scripts. By writing JavaScript code and executing it in the “Script” instrument, engineers can control any other instrument through extensive Application Programming Interfaces (APIs). This way, it is also possible to configure and run several instruments simultaneously in an easily repeatable way.
|
| |
|
| |
|

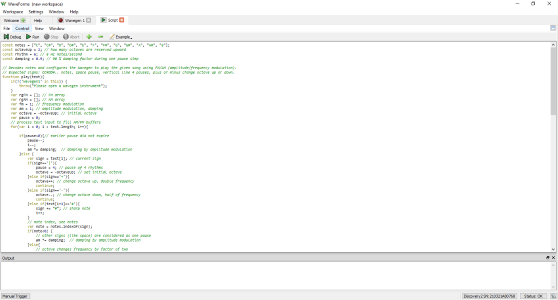

WaveForms Script Editor
|
| |
|
| |
|
Full Automation in Linux Mode
|
|
The Analog Discovery Pro can also operates in a Linux mode. In this mode, the ADP boots into a terminal-based Linux distribution from Debian installed on the device. This allows to run automated test scripts written in Python, C, C++, C#, or Visual Basic through the APIs of the WaveForms SDK without a host computer.
|
| |
|
| |
|

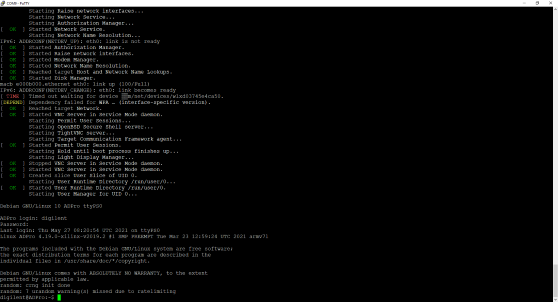

Linux Mode
|
| |
|
| |
|
Digilent Analog Discovery Pro is now available in Digi-Key.
|
| |
|
| | |
