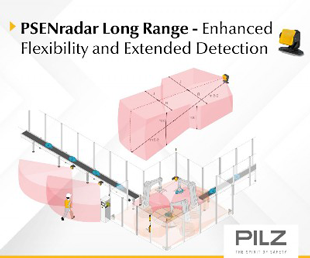

PSENradar LongRange – Enhanced Flexibility and Extended Detection up to 9m
|
| |
Safe radar sensors are essential in rugged environments where optoelectronic sensors fall short. Utilizing FMCW (frequency modulated continuous wave) radar technology, these sensors ensure continuous machine uptime despite external influences like dust, dirt, rain, light, sparks, or vibrations. Sensing range can often be a limiting factor of the application depending on the machine stop time or the working field.

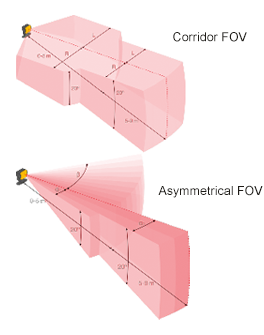

The new PSEN rd1.2 F-FOV LR enhances existing advantages by not only incorporating asymmetrical and corridor-shaped fields of view, broadening the range of applications that can benefit from radar technology. Notably, the PSEN rd1.2 F-FOV LR also extends its detection range up to 9 meters, significantly improving the ability to solve more safety applications, especially in mobile and expansive environments.
Additionally, both ProfiSafe and Fail Safe over EtherCAT (FSoE) communications are available as evaluation units, along with an OSSD I/O version. These options enable users to capture more data with the radar system, including detection coordinates, four detection zones, individual sensor status, and more. The analyzing unit supports up to six sensors and achieves SIL 2, PL d, and Category 3.
|
|
|
|
| |
|
|
| |
|
|
|
Key Benefits:
|
| |
|
|
Resilient: Operates effectively despite dust, dirt, rain, light, sparks, steam, and vibrations.
|
|
|
|
|
|
|
High Safety Standards: Meets Category 3 / PL d requirements, making it suitable for safeguarding robotics applications.
|
|
|
|
|
|
|
Long-Range Sensing: Offers a sensing distance of up to 9 meters, ensuring large areas can be monitored effectively.
|
|
|
|
|
|
|
Flexible and Versatile: Allows for optimized sensor alignment, individual protection zone configuration, and flexible mounting options thanks to its 3D sensing field.
|
|
|
|
|
|
|
|
|
Tamper Detection: Equipped with an accelerometer to detect tampering, enhancing security and reliability.
|
|
|
|
|
| |
|
|
|
| |
|
For more information, contact your local Pilz safety expert to discuss your challenging safety applications.
|
| |
|
|
| |
|
|
